Basic Info

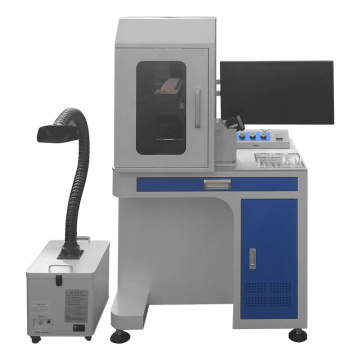

Model No.: Semi-closed MOPA Fiber Laser Marking Machine
Brand: Zixu
Origin: China
Laser Type: MOPA Fiber
Laser Brand: JPT, GZTech, MAX or customize
Laser Power: 30W / 60W / 100W / 200W / 300W
Work Area: 100 * 100mm, 110 * 110mm, 150 * 150mm, 175 * 175mm, 200 * 200mm or customize
Laser Wavelength: 1065 ± 10nm
Beam Quality (BBP): ≤ 1.6㎡
Energy Per Pulse: ≤ 1.5mJ
Pulse Duration: 2 ~ 500ns
Frequency: 1 ~ 4000kHz
Positioning Speed: 8000 ~ 23000mm/s
Scanning Speed: 5000 ~ 12000mm/s
Writing Speed: 450 ~ 600cps
Repeat Accuracy: ± 0.002mm
Laser Lifespan: ≥ 100,000hrs
Cooling Method: Air cooling
Power Input: 100 ~ 240VAC @ 50 / 60 Hz
Operation Temperature: 10 ~ 40℃ or 50 ~ 104℉
Storage Temperature: -10 ~ 60℃ or 14 ~ 140℉
Relative Humidity: 5 ~ 75%, no condensation

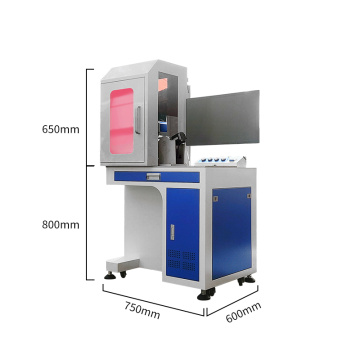

Dimension: 750 * 600 * 1450mm
N.W.: 103kg
Additional Info
Packaging: Wood carton,1200 * 1150 * 2000mm,125kg
Transportation: Ocean,Express
Place of Origin: China
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,DDU,CFR,Express Delivery,CIF,EXW,DAF,FAS,FCA,CPT,CIP,DEQ,DDP,DES
Product Description
Product Categories : MOPA Fiber Laser Marking Machine > Enclosed MOPA Fiber Laser Marking Machine
