Home > Products > Laser Cleaning Machine > Pulse Laser Cleaner > Automatic MOPA Fiber Laser Cleaning Machine for Paint Stripping for AITO Smart Cockpit Components

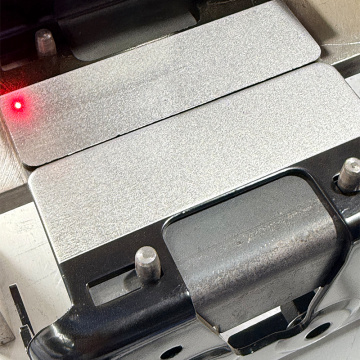

Automatic MOPA Fiber Laser Cleaning Machine for Paint Stripping for AITO Smart Cockpit Components





View the big picture

Automatic MOPA Fiber Laser Cleaning Machine for Paint Stripping for AITO Smart Cockpit Components

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,Express Delivery,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU
Min. Order:	1

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Automatic MOPA Fiber Laser Cleaning Machine for Paint Stripping for AITO Smart Cockpit Components

Brand: Zixu

Origin: China

Laser Type: MOPA Fiber

Laser Brand: JPT, GZTech, MAX or customize

Laser Power: 100W, 200W, 300W, 500W or customize

Work Area: 150 * 150mm or customize

Motion Travel: 800mm X-axis or customize

Laser Wavelength: 1065 ± 10nm

Beam Quality (BBP): ≤ 1.6㎡

Energy Per Pulse: ≤ 1.5mJ

Pulse Duration: 2 ~ 500ns

Frequency: 1 ~ 4000kHz

Positioning Speed: 8000 ~ 23000mm/s

Scanning Speed: 5000 ~ 12000mm/s

Writing Speed: 450 ~ 600cps

Repeat Accuracy: ± 0.002mm

Motion Control: Customize X, Y and Z axis servo motor moving module

Laser Lifespan: ≥ 100,000hrs

Cooling Method: Air cooling

Power Input: 100 ~ 240VAC @ 50 / 60 Hz

Operation Temperature: 10 ~ 40℃ or 50 ~ 104℉

Storage Temperature: -10 ~ 60℃ or 14 ~ 140℉

Relative Humidity: 5 ~ 75%, no condensation

Dimensions: 1100 * 600 * 1500mm & 560 * 280 * 500mm & 400 * 300 * 330mm

N.W.: 170kg

Additional Info

Packaging: Wood carton,1250 * 750 * 1750mm & 650 * 360 * 560mm & 480 * 420 * 400mm,205kg

Transportation: Ocean,Express

Place of Origin: China

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,Express Delivery,CIF,DAF,EXW,DES,FAS,FCA,CPT,CIP,DEQ,DDP,DDU

Product Description

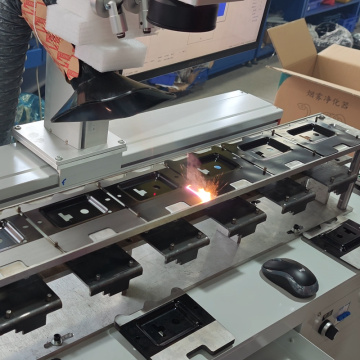

This MOPA Fiber Laser Marking Machine, customized for SERIES, is a high-end Marking Machine integrating "paint stripping + traceability": an 800 mm X-axis moving module equipped with customized 6-station tooling, a 100–300 W JPT M7 Mopa Fiber Laser, and EZCAD software, perform precise paint stripping and serial number marking on two components of the smart cockpit. Dual-button programming automatically retrieves the corresponding product's graphics, laser parameters, and coding files; the entire tray is placed, and it can be started with a single button, eliminating line changeover time. Through deep API integration with the customer's MES system, it transmits paint stripping results, marking results, and marking content back in real time, achieving digital closed-loop management. If some metal brackets still require impact-type deep marking, a miniature Pneumatic marking machine can be installed side by side, sharing the Fixture and data flow with this Laser Marking Machine. The MOPA laser is responsible for "paint stripping + cold marking", while the pneumatic micro-punching is responsible for "deep marking + anti-counterfeiting". The dual marking machine process enables the intelligent cockpit components to be fully intelligent from "paint removal" to "marking".
