Home > Products > Dot Peen And Scribe Marking > Desktop Dot Peen Marking Machine > Benchtop Pneumatic Dot Peen Marking Machine 140x80mm D01





View the big picture

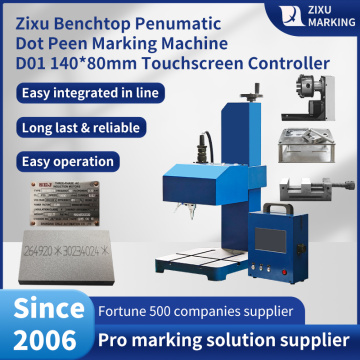

Benchtop Pneumatic Dot Peen Marking Machine 140x80mm D01

Payment Type:	T/T,D/P,D/A,Others
Incoterm:	FOB,DDP,CFR,DDU,CIF,Express Delivery,EXW,FAS,FCA,DES,CPT,CIP,DEQ,DAF
Min. Order:	1 Set/Sets

Contact Now

Add to Basket
Share to:

Basic Info

Model No.: Benchtop Dot Peen Marking Machine 140x80mm D01

Brand: Zixu

Origin: China

Marking Type: Pneumatic dotting

Marking Speed: 2-5 characters (2x2mm)/s

Marking Depth: 0.01 ~ 1.2mm (Vary to the material)

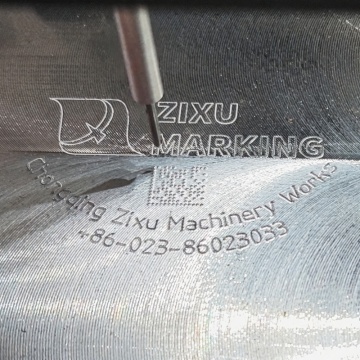

Marking Contents (Thorx-6): English letter, number, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.

Marking Contents (Thorx-7 / Thorx-9): English letter, number, dot fonts, QR codes, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.

Marking Contents (Kingmark-8): Multilanguage letter, number, dot fonts, QR codes, Data Matrix codes, shift codes, serial number, date, time, Logo, graphics, etc.

Stylus Pin Hardness: HRA93

Marking Area: 140mm * 80mm

Marking Materials: Below HRC60 metallic and nonmetallic materials

Repeat Accuracy: 0.02 ~ 0.04mm

Rated Power: 300W

Power Input: AC 110V 60HZ or AC220V 50HZ

Control Software: Thorx-6 / Thorx-7 / Thorx-9 / Kingmark-8

Controller: 7'' or 10.1'' touchscreen controller

Connection: USB and RS-232

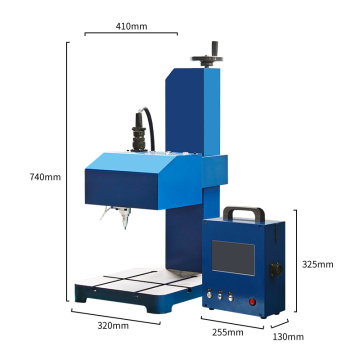

Dimensions: 410 * 320 * 740mm & 305 * 280 * 120mm

N.W.: 35kg

Additional Info

Packaging: Wood carton,600 * 400 * 900mm,50kg

Transportation: Ocean,Land,Air,Express,Others

Place of Origin: China

Port: Chongqing,Guangzhou,Shenzhen

Payment Type: T/T,D/P,D/A,Others

Incoterm: FOB,DDP,CFR,DDU,CIF,Express Delivery,EXW,FAS,FCA,DES,CPT,CIP,DEQ,DAF

Product Description

This basic desktop Pneumatic Dot Peen Marking Machine (Model D01, D=Display) features a 140×80 mm working area and a separate design for the Marking Machine and controller, serving as a "visual starting point" for all desktop Marking Machines. This model uses a touchscreen controller for easier computer operation and can be automated by customers or technology integrators, quickly completing the deployment of Other automated production lines. Furthermore, this model can be equipped with various easy-to-use fixtures to achieve optimal marking efficiency or results, including a universal vise for small parts, manual, electromagnetic, or pneumatic nameplate clamps, and rotating clamps for small to medium-sized steel pipes, cylinders, flanges, and rings. As the base model for our desktop and benchtop pneumatic marking machines, this machine also uses a linear guide structure and high-performance solenoid valves, resulting in significantly superior performance in terms of vibration, marking effect, noise, and lifespan compared to popular cylindrical guide marking machines on the market. This marking machine uses the Thorx-6 operating system in its basic configuration, which can meet the needs of editing and marking English letters, numbers, symbols, Datamatrix codes, and custom graphics on regular workpieces, and can achieve automatic code skipping. In addition, for users who need to mark QR codes, dot matrix fonts and special fonts, or who need to mark content in less common languages, we can also upgrade to more powerful operating systems such as Kingmark 8 (K8), Thorx 9 (T9), and Thorx 7 (T7).
